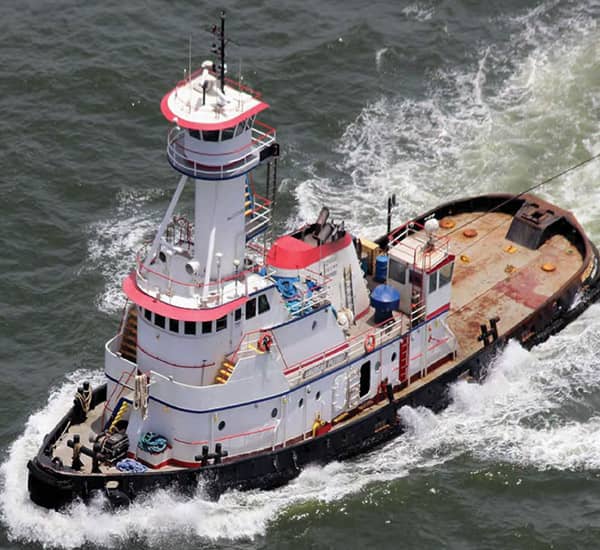

American Patriot A MEMBER OF AWO’S RESPONSIBLE CARRIER PROGRAM
Year Built: 1971, Halter Marine, New Orleans, LA, USA
Dimensions: 121′ X 34′ X 18.8′
Height of Eye: 49 Feet
Main Propulsion: Two (2) Alco-12-251-C 2050HP ea.
Reduction Gears: Lufkin RSQ3620 5.6:1 Ratio
Propellers: Two (2) 4-Blade 132″x 95″
Speed: 13 Knots
Fuel Capacity: 110,400 Gallons
Water Capacity: 6,100 Gallons
Lube Oil Capacity: 2,700 Gallons
Electronics: Gyro compass w/Auto Pilot, 3 Radars, Single Side Band w/encoder, 8 VHFs, 2 AIS 2 GPSs, 2 Loud hailers, 2 Cellular phones, 1 Satellite phone w/fax, 1 Fathometer, Email capabilities & Data reports, Weather Fax, Navtex, 2 Magnetic Compasses, 2 Navigation computers w/ Nobeltech Admiral & Maptech Chart Navigator software, Nobeltech daily worldwide weather forecast graphics, 2 ship’s business computers Elevated Control Tower: Height of Eye-49 feet
Towing Winch: Skagit DTW50 w/2500’x2″ tow wire ea. drum. 250,000 lbs. line pull.
Bollard Pull: 126,000 lbs.
Gross Tons: 196 Tons
Net Tons: 133 Tons
Call Letters: WDB9567
Official Number: 529679
IMO Number: 7113882
Area of Operations: ABS Classed Hull & Machinery, A-1 Towing All Oceans
