American Emerald A MEMBER OF AWO’S RESPONSIBLE CARRIER PROGRAM
DOWNLOAD SPEC SHEET

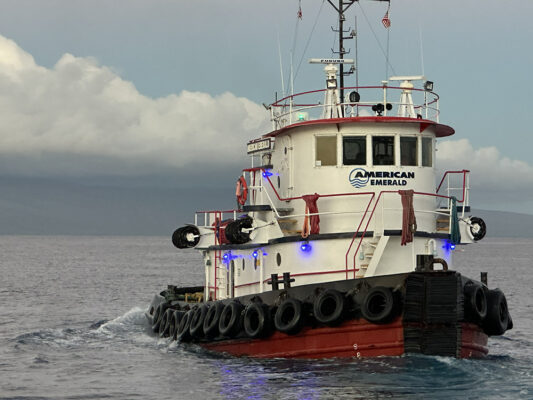

American Emerald
American Emerald A MEMBER OF AWO’S RESPONSIBLE CARRIER PROGRAM
Year Built: 1973, Total rebuild 2004, Repowered 2020 Dimensions: 70′ x 24′ x 8.5′
Main Propulsion: QSK-19 Cummins Tier 3 1600 HP Twin Screw
Generators: Two (2) John Deere 40KW
Reduction Gears: Twin Disc 527, 5.17:1 Turning
Propellers: 64″ x 48″ Michigan 4-Blade Stainless Steel Wheels Speed: 9 Knots
Fuel Capacity: 16,000 Gallons
Water Capacity: 2,000 Gallons
Lube Oil Capacity: 240 Gallons
Electronics: Two (2) Radars, One (1) Single Side Band Radio w/24 hr. NECODER Ringer, One (1) SAT-NAV, Ratheon-DPGS NAV System w/Printer, One (1) Weather Fax, One (1) Fathometer, Two (2) VHFs, Auto Pilot, Cell Phone Towing Winch: SMATCO Single Split Drum w/1,600′ x 1-3/8″ Steel Core Cable and 25 Ton of Line Pull and Stern Rollers for Anchor Handling
Gross Tons: 123 Tons
Net Tons: 83 Tons
Call Letters: WDC 6392
Official Number: 549 929
Area of Operations: Oceans, Coastwise, Island Waters
American Islander
DOWNLOAD SPEC SHEET
American Islander
American Islander Cargo Tows
Year Built: 1970 by Bender Marine (Complete rebuild 2002), Repower 2020
Dimensions: 100′ x 24′ x 12′
Deck Space: Clear Deck Space 1100 sq. ft. 55 Long Tons of Cargo
Main Propulsion: 2 Caterpillar C32 Tier 3, Combined 1600 HP
Generators: 40 Kw, 110/220 Volts, John Deere
Speed: 12 Knots
Fuel Capacity: 21,000 Gallons 086 Tons
Fuel Consumption: 50 GPH
Potable Water: 26,263 Gallons 100 Tons
After Station: Yes
Jet/Fire Monitor: Jet/Fire Pump 6″ Deming Drive by Cummins QSB 6.7 Tier 3. 305 HP, 1-1/2″ Nozzle at 130 PSI.
Hydraulic “A” Frame: 15 Ton Articulating “A” Frame
Hydraulic Crane: 12 Ton Hydraulic Crane
Deck Winch: Hydraulic Single Drum w/Single Capstan.
Capacity: 1500′ of 1-3/8″ Wire Line Pull at 25 RPM 25,000 LBS at 12 1/2 RPM 50,000 LBS
Bow Winch: Hydraulic Single Drum w/Double Capstan 1300′ of 7/8″
Wire Electronics: Two (2) Radar, Single Side Band Radio, Two (2) VHF Radios, One (1) Private UHF Radio, Auto Pilot, GPS, 50 MHz Depth Sounder, SAT Phone
Accommodations: USCG certified for 27 passengers
Gross Tons: 98 Tons
Light Ship Tons: 177 Tons
Official Number: 529 318
Dwt (1/2 F&W): 281
Tons Area of Operations: Oceans, Coastwise, Lakes, Bays, and Sounds
Bollard Pull: 010 Tons
