Category Archives: Marine Services Equipment

Lanai City

lanai-city-boat
lanai-city-boat

LANAI CITY

photo coming soon.

Year Built: 1969

Length: 45.7′

Beam: 15.4′

Vertical Clearance: 23.0’

Max Draft: 6.5′

Height of Eye: Pilothouse – 9′  Flying Bridge – 17′

Main Propulsion: 2 ea – GM 8V71; 250 HP

Reduction Gears: Allison MH20

Propellers: 2 – 50″ diam x 36″

Max Speed: 9.5 Knots

Cruising Speed: 8.0 Knots

Fuel Capacity: 2500 gal

Potable Water Capacity: 100gal

Lube Oil Capacity: 130 gal

Electronics: 1 Furuno Radar, 3 VHFs, 1 GPS, 1

Cellular phone Towing Winch: N/A Bollard Pull: N/A

Tonnage: 28 GRT

Call Letters: WDF 7470

Official Number: 523488

Berths: 1

AMC 160

amc-160-marine-equipment2

CB AMC-160

amc-160-marine-equipment
amc-160-marine-equipment3
amc-160-marine-equipment2

CB AMC-160

Dimensions: 160′ x 51′ x 13′

Winches: 50,000# Line pull BU-140 winches central air control

Machinery: 60 KW Generator ships air below deck

Mooring Array: 1-1/4″ Wire Rope, Fixed Turning Blocks and Berger Fairleads, 6-Ton Anchors

Crane: 4500 Manitowoc, Rated 100 Tons Over Stern, Maximum Boom Height 167′

Gross Tons: 925 Tons

Net Tons: 925 Tons

Official Number: 1211112

Area of Operations: Coastwise Registry

American Patriot

american-patriot-nigeria-tow

American Patriot A MEMBER OF AWO’S RESPONSIBLE CARRIER PROGRAM

american-patriot-nigeria-tow
american-patriot-tub-boat
DOWNLOAD SPEC SHEET

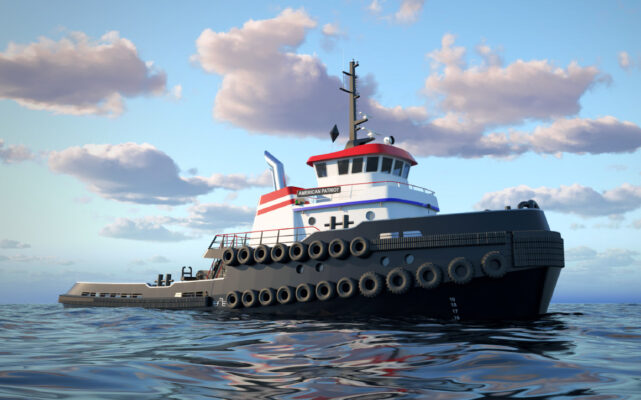

American Patriot

American Patriot A MEMBER OF AWO’S RESPONSIBLE CARRIER PROGRAM

Year Built: 1971, Halter Marine, New Orleans, LA, USA

Dimensions: 121′ X 34′ X 18.8′

Height of Eye: 49 Feet

Main Propulsion: Two (2) Alco-12-251-C 2050HP ea.

Reduction Gears: Lufkin RSQ3620 5.6:1 Ratio

Propellers: Two (2) 4-Blade 132″x 95″

Speed: 13 Knots

Fuel Capacity: 110,400 Gallons

Water Capacity: 6,100 Gallons

Lube Oil Capacity: 2,700 Gallons

Electronics: Gyro compass w/Auto Pilot, 3 Radars, Single Side Band w/encoder, 8 VHFs, 2 AIS 2 GPSs, 2 Loud hailers, 2 Cellular phones, 1 Satellite phone w/fax, 1 Fathometer, Email capabilities & Data reports, Weather Fax, Navtex, 2 Magnetic Compasses, 2 Navigation computers w/ Nobeltech Admiral & Maptech Chart Navigator software, Nobeltech daily worldwide weather forecast graphics, 2 ship’s business computers Elevated Control Tower: Height of Eye-49 feet

Towing Winch: Skagit DTW50 w/2500’x2″ tow wire ea. drum. 250,000 lbs. line pull.

Bollard Pull: 126,000 lbs.

Gross Tons: 196 Tons

Net Tons: 133 Tons

Call Letters: WDB9567

Official Number: 529679

IMO Number: 7113882

Area of Operations: ABS Classed Hull & Machinery, A-1 Towing All Oceans
